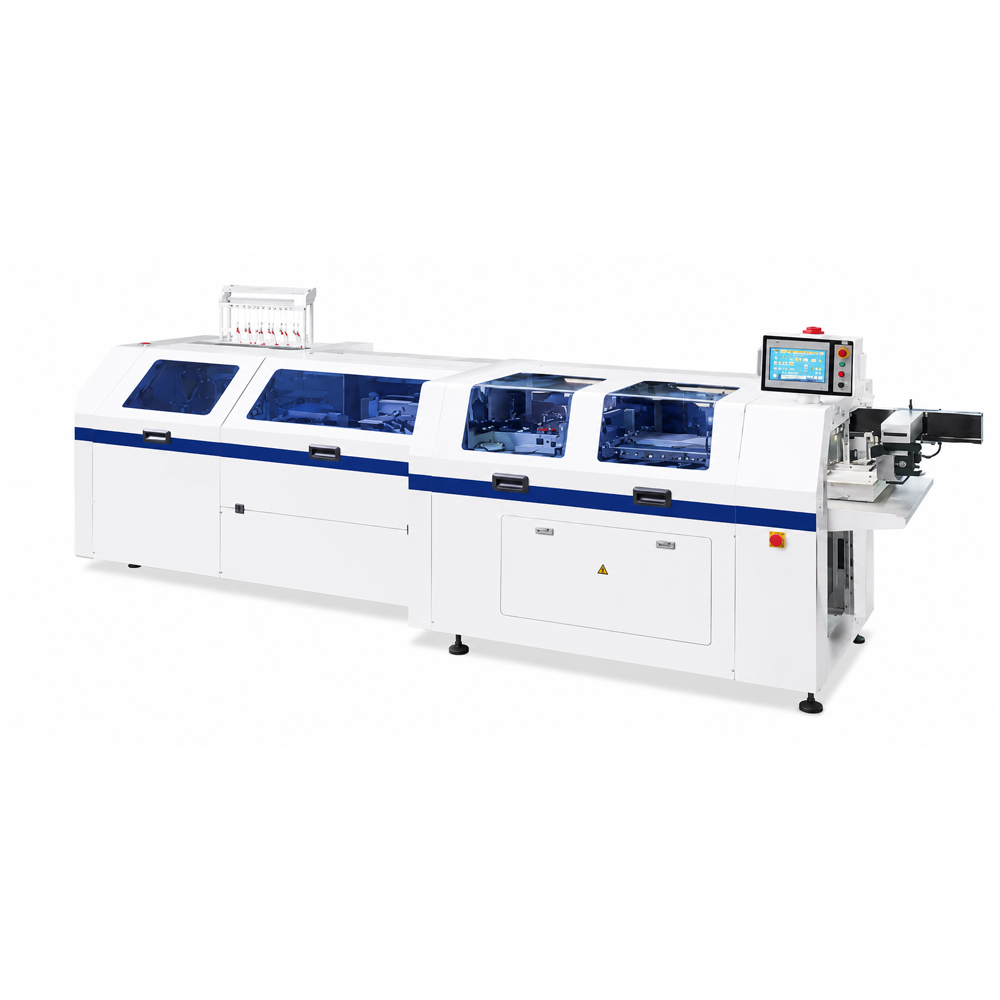

HDP SEW-S Sheet-Fed Digital Book Sewing Machine

The HDP SEW-S Sheet-Fed Digital Book Sewing Machine is a highly integrated and multifunctional digital book sewing system that combines sheet counting, folding, collating, thread sewing, and separated book output in one production process. It also supports an independent semi-automatic sewing mode, with a maximum format of 460×430mm, providing flexible operation for different book production requirements. The machine handles a wide range of paper types and weights from 70gsm to 200gsm, including thick paper, thin paper, and coated paper. Automatic format adjustment significantly reduces setup and start-up time, enabling fast job changeovers and efficient production across different book sizes and specifications. By integrating automation, precision, speed, and stable operation, the HDP SEW-S improves sewing consistency and overall production efficiency. It provides a flexible, simple, and efficient sheet-fed book sewing solution for digital printing and professional bookbinding production.

Specifications

  • Max. Folding Size
  • 460×650mm(L×W)
  • Min. Folding Size
  • 150×160mm(L×W)
  • Max. Folding Speed
  • 300cycles/min
  • Max. Binding Size
  • 460×430mm(L×H)
  • Min. Binding Size
  • 150×80mm(L×H)
  • Max. Sewing Speed
  • 70cycles/min
  • Power
  • 4kW
  • Dimensions
  • 4450×1450×1250mm(L×W×H)
  • Net Weight
  • 2000kg
