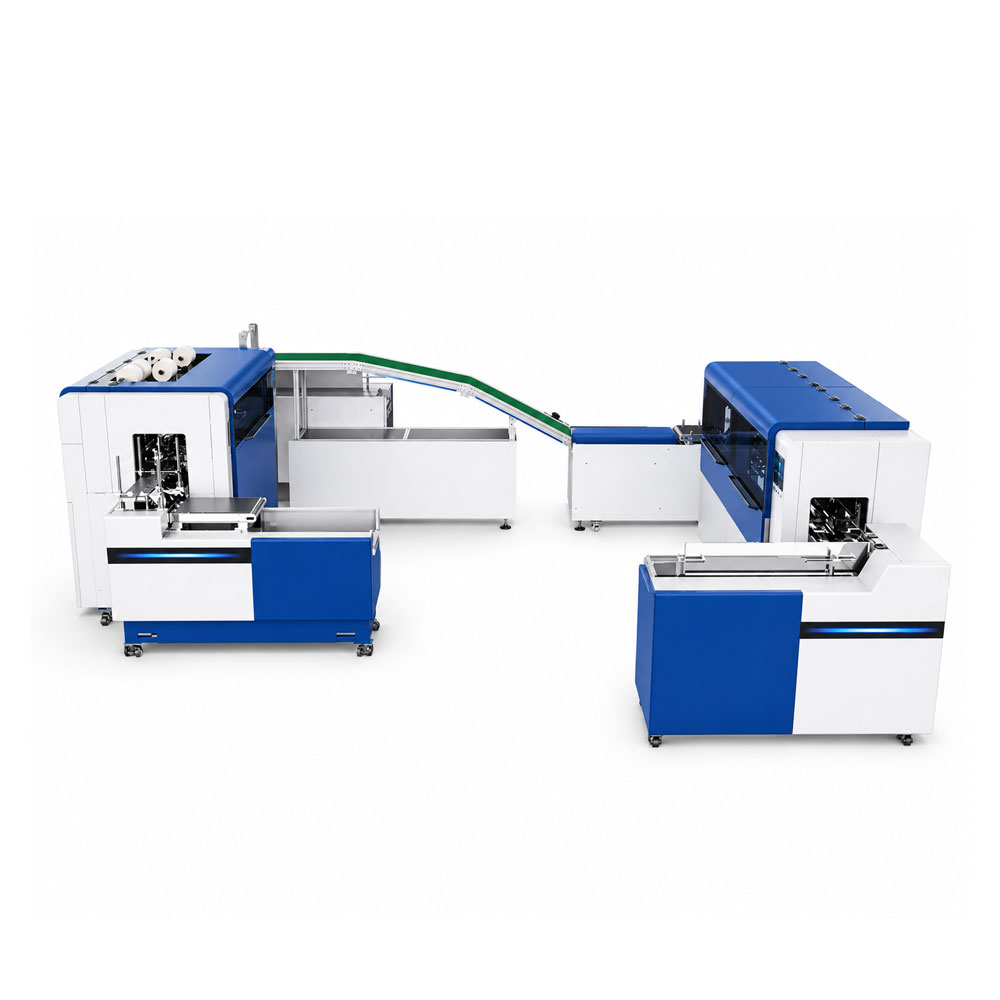

HX300 Integrated Automatic Ribbon and Headband Application Production Line
The HX300 Integrated Automatic Ribbon and Headband Application Production Line combines bookmark ribbon attaching and headband application into one automated bookbinding process. Designed for hardcover books, notebooks, ledgers, and similar products, the line automatically completes book feeding, ribbon attaching, ribbon tail folding, headband application, finished-book delivery, and stacking.
The HX300 can operate as a stand-alone production line or be integrated in-line with a complete hardcover book production system. By automating multiple finishing processes, it significantly reduces manual labor requirements while improving production efficiency, consistency, and overall workflow reliability.
Equipped with a user-friendly control system, the HX300 provides simple operation and fast one-touch format changeover, making it a flexible and efficient solution for professional hardcover bookbinding production.
Integrated Ribbon Attaching and Headband Application in One Production Line
Automatic Book Feeding, Ribbon Tail Folding, Delivery and Stacking
Suitable for Hardcover Books, Notebooks, Ledgers and Similar Products
Stand-Alone Operation or In-Line Integration with Hardcover Production Systems
One-Touch Format Changeover for Fast and Simple Operation
Specifications
Max. Book Size
240–300 mm
Min. Book Size
85–100 mm
Book Thickness
4–60 mm
Ribbon Width
3–13 mm
Headband Width
15–17 mm
Production Speed
20–40 Books/Min
Motor Power
16 kW
Voltage
380 V
Air Pressure
13 Bar
Machine Weight
3,000 kg
