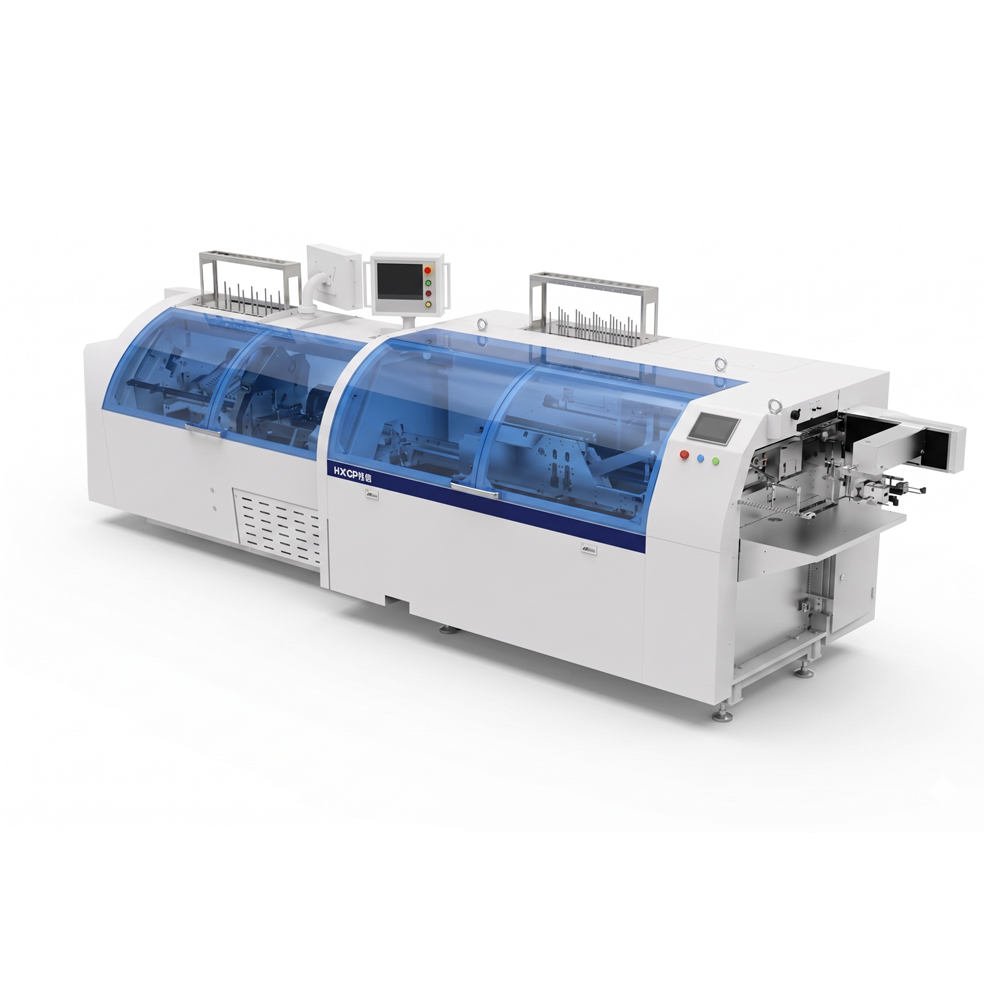

HDP SEW Digital Thread Sewing Machine

PRODUCT OVERVIEW

The HDP SEW Digital Book Sewing Machine is a modular book block production system combining the HDP200 Digital Collating Feeder with a high-speed thread sewing unit. It integrates sheet feeding, registration, creasing, folding, saddle-style collating and thread sewing into a continuous inline workflow for digital, offset and hybrid book production. The feeding section handles both individual sheets and pre-folded signatures. Individual sheets can be creased and folded into 4-page signatures before collating, while pre-folded signatures enter the gathering process directly. Ultrasonic double-sheet and missing-sheet detection, together with barcode or Data Matrix verification, ensure accurate sequence control. A synchronized transport and alignment system continuously transfers assembled signatures to the sewing saddle, reducing idle time and supporting stable book block production. For flexible production arrangements, the HDP200 can operate independently as a collating feeder, while the sewing unit can function as a standalone thread sewing machine.

KEY FEATURES

Specifications

  • Max. Sheet Size640×420mm
  • Min. Sheet Size200×150mm
  • Max. Signature Size420×320mm
  • Min. Signature Size120×75mm
  • Paper Weight60-157gsm
  • Max. Speed12000cycles/h
  • Power Supply380VAC
  • Power8kW
  • Compressed Air6bar/4L/min
  • Operating Humidity15-85%
  • Operating Temperature5-40°C
  • Weight4000kg
  • Collating Feeder Dimensions2900×1410×1730mm(L×W×H)
  • Sewing Unit Dimensions5176×1866×1730mm(L×W×H)
